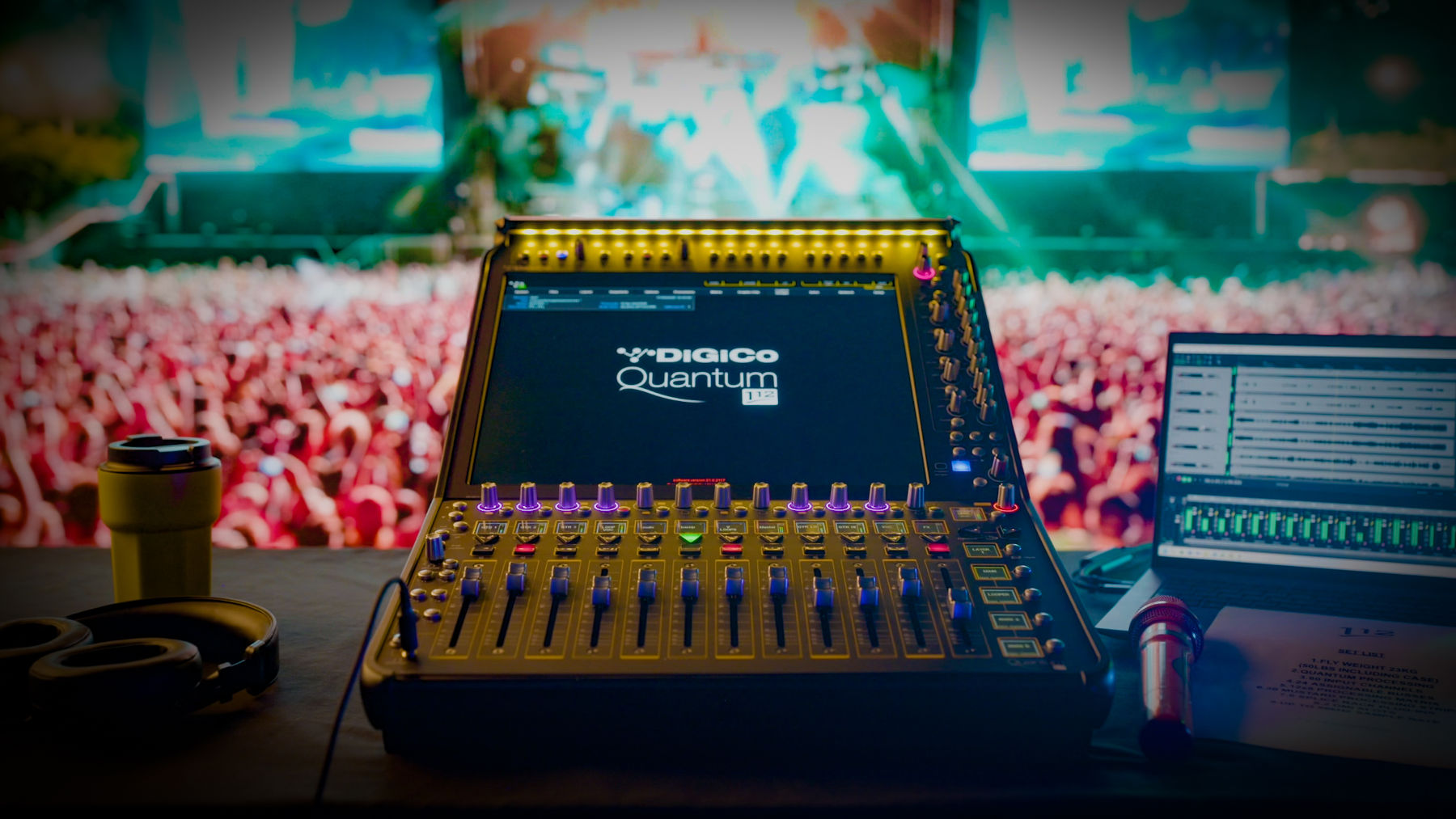

UK - DiGiCo has introduced its smallest and newest addition to the Quantum family - the Quantum112, a single-screen, 12-fader desk that is DiGiCo’s first true flypack mixer.
Designed to fit within a rugged and robust Peli Air 1637 case, the console, when packed, weighs only 23 kilos (50lbs), qualifying it as a standard checked bag option on most flights.
Based on the latest seventh-generation FPGAs, DiGiCo’s latest product offers 80 input channels with 24 aux/subgroup busses, LR/LCR master busses, and a 12x8 matrix, all with full channel processing. 12 control groups plus two solos are also available.
Sporting a 17”, 1000-nit, high-brightness multitouch screen with both a meterbridge and soft quick-select buttons for speedy and intuitive operation, the Quantum112 is additionally equipped with 18 individual TFT channel displays to provide clear user feedback and interaction. Beneath the main display are a dozen newly-sourced 100mm touch-sensitive faders, selected for their smooth movement and precision control.
The DiGiCo Quantum112 incorporates familiar Quantum Range features like Mustard Processing channel strips (20), Spice Rack plug-in style native FPGA processing options (6), and Nodal Processing (24). 12 graphic EQs are further available, as are eight FX Rack slots.
Other highlights include Stadius 32-bit ADC and DAC conversion, dual DMI slots, and a host of versatile I/O options, including Dante (64 channels in and 64 channels out at both 48kHz and 96kHz), MADI (redundant or single), optional optics, AES, local connections (16 analogue inputs and eight outputs), and more.
“Our new Quantum112 is a brilliant illustration of the idiom, ‘Good things come in small packages’,” says DiGiCo managing director Austin Freshwater. “We originally tasked our R&D team to create a rack-mountable Quantum console to replace the SD11, which is now 14 years old, and they absolutely outdid themselves. Not only is the Quantum112 rackable, but it’s also small and light enough when cased to be under the magic size and weight numbers when travelling by air.”
“The initial brief really challenged our team, driving us to research new materials, optimise design techniques, and inversely shrink topologies while increasing performance,” confirms DiGiCo head of research and development Michael Aitchison. “Our previously smallest console, the SD11, weighs 24 kilos without packaging, and 73 kilos when flight-cased, so it wasn’t a proper flypack product. The new Quantum112 is nearly 70% lighter, but still incredibly solid, and far more powerful. We’re extremely proud with how it has turned out and suspect that our customers will be quite pleased with it, too.”
